723.32.P42P42

HUCO

Product pictures

723.32.P42P42

Product description

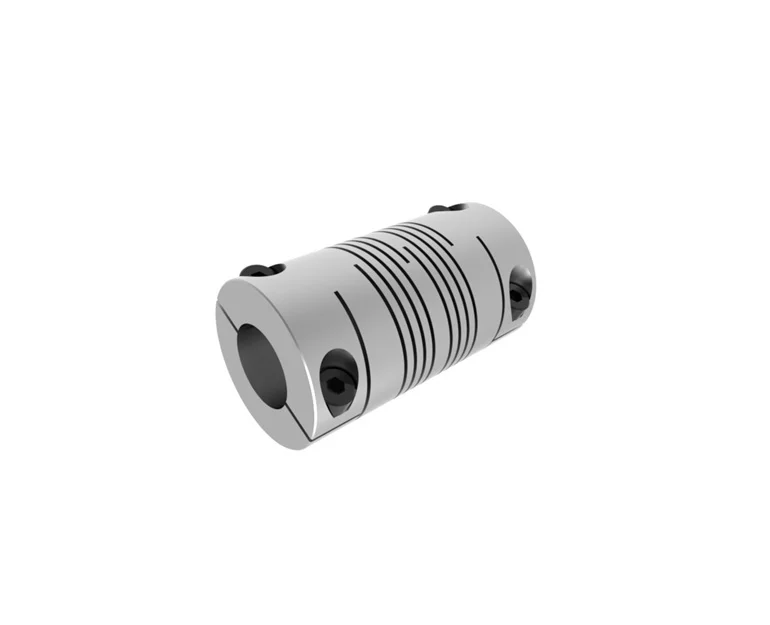

Coupling Type : MultiBeam Coupling
Configuration : 6 Beam Relieved Bore
Material : Stainless Steel
Bore B1 (mm): 16 with key
Bore B2 (mm):16 with key
Angular Compensation, Max (degrees): 7
Bore Tolerance (mm):+0.03 / -0.00
Fastener Screw Size: M4
Fastener Screw Torque (Nm): 2.85
Fastener Wrench Size (mm)3:
Max Speed (rpm) :15000
Operating Temperature (°C)-40 to +140
Peak Torque (Nm): 25
Radial Compensation, Max (mm): 0.5
Resists Axial Load: Yes
Shaft Connection: Clamp
Torsional Stiffness (Nm/rad): 364
Mass (Weight) (g) : 262
[D] Outside Diameter (mm): 31.8
[L] Length (mm): 57.2
