CTV series
Description

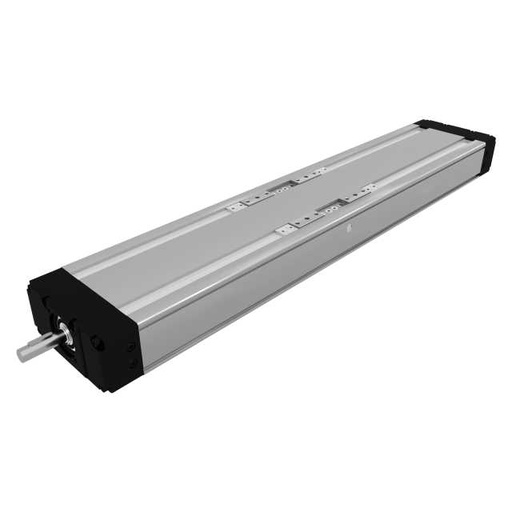

Linear unit with two parallel, integrated zero clearance rail guiding
systems allows high load capacities and optimal cycles for the movement
of larger masses at high speed. The aluminium profile includes T-slots
for fixing the linear unit and for attaching sensors and switches.
Sizes: 90, 110, 145, 200
Drive type: Ball screw
Repeatability: Up to ± 0,01 mm
Travel speed: Up to 2,5 m/s
Max. Stroke: Up to 2000 mm
Max. Axial Load: Up to 29600 N
Max. drive torque: Up to 52,3 Nm
Some products in this category
| Products | ||
|---|---|---|
|
CTV 110 1605 ISO7 0 500 S 1 0
Unimotion Linear unit CTV 110 |
|
|
CTV 145 2005 ISO7 0 250 L 0 1
Unimotion Linear unit CTV 145 |
|
|
CTV 110 1605 ISO7 0 250 S 1 0
Unimotion Linear unit CTV 110 |
|
|
CTV 110 1610 ISO7 1 1325 L 1 2
Unimotion |
|
|
CTV 145 2005 ISO7 0 500 L 0 1
Unimotion Linear unit CTV 145 |
|
|
CTV 110 1610 ISO7 0 1200 L 0 1
Unimotion |
|
|
CTV 90 1210 ISO7 0 150 S 0 1
Unimotion Linear unit CTV90 |
|
|
Linear unit CTV110 |
|
| Products | DESCRIPTIOn |
PICTURE |
|---|---|---|
|
CTV 110 1605 ISO7 0 500 S 1 0
Unimotion |
Linear unit CTV 110 |
|
|
CTV 145 2005 ISO7 0 250 L 0 1
Unimotion |
Linear unit CTV 145 |
|
|
CTV 90 1210 ISO7 0 150 S 0 1
Unimotion |
Linear unit CTV90 |
|
|
Linear unit CTV110 |
|
|
