  4. Hybrid lineaire actuator

Hybrid lineaire actuator

Description

HaydonKerk hybrid linear actuators offer high power and exceptionally long life in a very small package. These 2-phase stepper motors directly control a high-quality polymer nut in combination with a stainless steel precision threaded screw. This patented solution reduces friction and backlash, giving them much higher efficiency and more reliable operation than the V-shape and bronze nut configuration commonly used in other linear actuators. All actuators are available in captive, non-captive and external linear configurations. See the multimedia file for more information.

Some products in this category

ProductDESCRIPTIOn

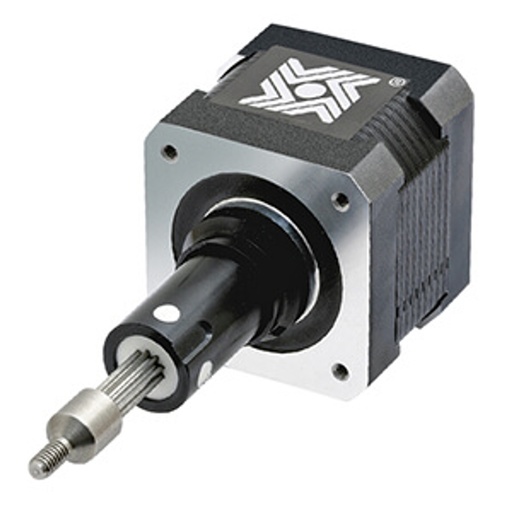

21H4AB-7.5-905

HAYDONKERK

Hybrid stepper linear actuator

  • Dimension (mm): 21 x 21
  • Stroke (mm): 12.7
  • Type: captive
21H4U-05-904

HAYDONKERK

Hybrid stepper linear actuator

  • Dimension (mm): 21 x 21
  • Stroke (mm): 9
  • Type: captive
57H4A-12-910

HAYDONKERK

Hybrid linear actuator, captive type

  • Dimension (mm): 56 x 56
  • Stroke (mm): 25.4
  • Type: captive
21F4N-2.5

HAYDONKERK

Hybrid stepper linear actuator

  • Dimension (mm): 21 x 21
  • Screw length (mm): 101.6
  • Type: non-captive
28F41-2.1-906

HAYDONKERK

Hybrid stepper linear actuator

  • Dimension (mm): 28 x 28
  • Type: non-captive
35F4J-2.33-906

HAYDONKERK

Hybrid stepper linear actuator

  • Dimension (mm): 35 x 35
  • Screw length (mm): 101.6
  • Type: non-captive
35H4N-2.33-907

HAYDONKERK

Hybrid stepper linear actuator
Cable length (cm) : 30

  • Dimension (mm): 35 x 35
  • Stroke (mm): 19
  • Type: captive
43F4A-2.33-099

HAYDONKERK

Hybrid stepper linear actuator
Actuator type: Non-Captive
Current per phase: 1.5 A
Linear travel per step(mm) : 0.0079
Stack length : Single

  • Dimension (mm): 42 x 42
  • Screw length (mm): 152.4
  • Type: non-captive
43H4A-2.33-098

HAYDONKERK

Hybrid stepper linear actuator

  • Dimension (mm): 42 x 42
  • Stroke (mm): 12.7
  • Type: captive
43LAG-2.33-099

HAYDONKERK

Hybrid stepper linear actuator, double stack

  • Dimension (mm): 42 x 42
  • Screw length (mm): 152.4
  • Type: non-captive
E35H4N-2.33-906

HAYDONKERK

Hybrid actuator, external linear type

  • Dimension (mm): 35 x 35
  • Screw length (mm): 152.4
  • Type: external linear
57F4A-3.25-099

HAYDONKERK

Hybrid linear actuator, non-captive type

  • Dimension (mm): 56 x 56
  • Screw length (mm): 152
  • Type: non-captive
43K4U-2.33-905

HAYDONKERK

Hybrid linear actuator, captive type
Linear travel per step(mm):0.0015

  • Dimension (mm): 42 x 42
  • Stroke (mm): 12.7
  • Type: captive
E57H42-3.25-900

HAYDONKERK

Hybrid actuator, external linear type
Current per phase : 2.0 A
Linear travel per step(in/mm) : 0.002 / 0.0508
Max thrust @ 100% (lb/N) : 75 / 334
Resistance per phase : 1.63 Ohms
Stack length: Single

  • Dimension (mm): 56 x 56
  • Screw length (mm): 152.4
  • Type: external linear
43F4C-2.33-099

HAYDONKERK

Hybrid stepper linear actuator
Actuator type: Non-Captive
Current per phase: 1.5 A
Linear travel per step(mm) : 0.317
Stack length : Single

  • Dimension (mm): 42 x 42
  • Screw length (mm): 152.4
  • Type: non-captive
35F4Q-2.33-906

HAYDONKERK

Hybrid stepper linear actuator

  • Dimension (mm): 35 x 35
  • Screw length (mm): 101.6
  • Type: non-captive
43K4U-2.33-910

HAYDONKERK

Hybrid linear actuator, captive type
Linear travel per step(mm):0.0015

  • Dimension (mm): 42 x 42
  • Stroke (mm): 25.4
  • Type: captive
57K47-05-Axx

HAYDONKERK

Hybrid linear actuator, captive type with
+ resolution (mm/step) : 0.0031
+ AB nut
+ Teflon Coated Screw

  • Dimension (mm): 56 x 56
  • Stroke (mm): 12.7
  • Type: captive
E57H4S-3.25-034

HAYDONKERK

Hybrid actuator

  • Dimension (mm): 56 x 56
  • Screw length (mm): 300
  • Type: external linear
E35H4Q-2.33-906

HAYDONKERK

Hybrid actuator, external linear type
Lead : 4.86mm/rev

  • Dimension (mm): 35 x 35
  • Screw length (mm): 152.4
  • Type: external linear
