Gasveren voor Machinebouw en Industrie | Act in Time

Look for the product code here:

Gas springs

Description

Gas springs play a crucial role in the controlled movement, support and damping of loads in machines and equipment. Act in Time offers a wide range of high-quality gas springs from Bansbach, a world leader in precision gas springs.

Gas springs for various applications

Our gas springs are suitable for a variety of industrial and mechanical engineering applications, including:

✅ Mechanical engineering – Support and damping for hatches, hoods and flaps

✅ Medical and ergonomic applications – Adjustment mechanisms for chairs, beds and equipment

✅ Vehicles and transport – Gas springs for valves, cabins and tail lifts

✅ Automation and production technology – Smooth and precise movements without an external energy source

Customization and technical advice

Each application requires a specific force, stroke length and damping property. That is why Act in Time not only offers standard solutions, but also:

Technical advice on choosing the right gas spring
Tailor-made solutions tailored to your application
Various mounting options for easy integration into existing systems

Thanks to our cooperation with Bansbach, we guarantee gas springs of the highest quality, with a long service life and reliable performance.

🚀 Looking for the right gas spring for your application? Contact us!

Some products in this category

Product	DESCRIPTIOn	PICTURE
900BA4	Bracket for gas spring suitable for ball socket with AØ 10mm Max load 800N
900BA1SB	Bracket for gas springs with M8 hinge eye including retaining clip Max load 1000N

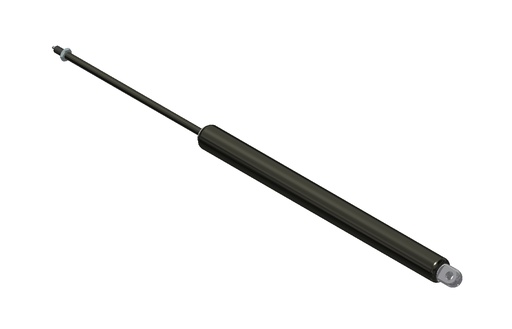

K0A4KK2-080-358--001_300N	Bansbach Easylift lockable Gas Spring K-type with Rigid locking in both directions Size 10/22 Push-out Force F1: 300N stroke 80mm EL1: 358mm with elbowjoint on cylinder side A4 normal speed
K0A4KK2-080-358--002_300N	Bansbach Easylift lockable Gas Spring K-type with Rigid locking in pull direction Size 10/22 Push-out Force F1: 300N stroke 80mm EL1: 358mm with elbowjoint on cylinder side A4 slow speed
K0A4KK2-080-358--003_400N	Bansbach Easylift lockable Gas Spring K-type with Rigid locking in both directions Size 10/22 Push-out Force F1: 400N stroke 80mm EL1: 358mm with elbowjoint on cylinder side A4 normal speed
K0A4KK2-080-358--005_600N	Bansbach Easylift lockable Gas Spring K-type with Rigid locking in both directions Size 10/22 Push-out Force F1: 600N stroke 80mm EL1: 358mm with elbowjoint on cylinder side A4 normal speed
A1A1N40-050-228-001/650N	Bansbach Easylift Gas Spring Stainless steel AISI 316L EL1 length: 228mm Normal speed and normal end-damping Dimension (mm): Ø8/19 Stroke (mm): 50 Linear Force (N): 650
20FGS	Flat Plastic Handle
W0A1KK2-200-646--002/600N	Bansbach Easylift gas spring Lockable K-type Short release K / normal speed F1 Force: 600N / progressivity +/- 40% With valve Dimension (mm): Ø10/22 Stroke (mm): 200
20ET2ALU	Alu Push Button for lockable gasspring Suitable for short release Without coil spring
F3F3G92-200-508—007/1000N	Bansbach Gas spring Dynamic groove version Without depressurizing valve Different speed when extending (normal speed) Push out force F1: 1000N With Ball sockets on both sides Build in length EL1: 508mm Dimension (mm): Ø10/22 Stroke (mm): 200
E2J2Z41-150-402-0XX/400N	Bansbach Easylift Gas Traction Spring Pull-in Force: 400N Force Progressivity approx. 25% Hinge eyes on both sides Ø8.2mm Dimension (mm): Ø 8/22 Stroke (mm): 150
Y9Y9-42-250-585 0xx 1000N	Bansbach Easylift Gas Spring Standard version Normal speed, normal eind-damping F1 push-out force: 1000N with Elbowjoints wit M8x13mm bolt on both sides EL1: 585mm Dimension (mm): Ø10/22 Stroke (mm): 250
K0N0PK3-059-215--001/200N	Bansbach Easylift Gas spring Rigid Locking in push-in direction, push-out direction relatively rigid EL1: 215mm Threads M8 x 8mm on Cylinder side Push-out Force F1: 200N Short release version Dimension (mm): Ø10/28 Stroke (mm): 59

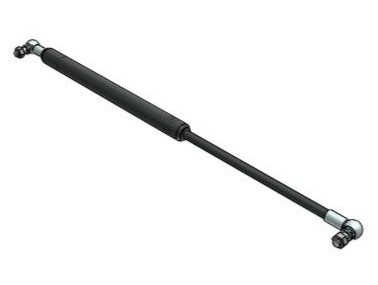

D3D3B41-145-375-001/700N	Bansbach Easylift Gas spring Heat setup version (sealings) with Valve in the Cylinder threaded end F1 Push-out force: 700N EL1 Build-in length: 375mm With Elbowjoint D3 on both sides Dimension (mm): Ø 8/22 Stroke (mm): 145
H1H1-4G-082-216--001/20N	Bansbach Easylift Gas Springs standard version Push-out Force F1:20N Hinge Eyes on both sides: Ø4,1mm EL1 Build-in length: 216mm Dimension (mm): Ø 4/12 Stroke (mm): 82
C5C5-40-250-612--0XX/200N	Bansbach Easylift Gas spring Standard version With clevis connections on both sides EL1 build-length: 612mm F1 push-out force: 200N Normal speed and normal end damping Dimension (mm): Ø8/19 Stroke (mm): 250
K0F2PB2-070-260--004/050N Bansbach	Lockable gas spring K-type 50N
QS-40-600-2920N	Bansbach Easylift Gas spring Quick Ship type slow speed, strong end damping F1-Pushout Force 2920N EL1: build in length: 1397mm(extended) Dimension (mm): Ø 20/40 Stroke (mm): 1600
D0M0ZF3-100-200-01/100N	Bansbach Easylift Traction Gas spring Pull-in Force F1: 100N EL1: 200mm With Valve in the threaded end With thread connections M10 on both sides Dimension (mm): Ø10/28 Stroke (mm): 100
NOT FOUND WHAT YOU'RE LOOKING FOR? Contact US!

Products
	900BA4 Bracket for gas spring suitable for ball socket with AØ 10mm Max load 800N
	900BA1SB Bracket for gas springs with M8 hinge eye including retaining clip Max load 1000N
	K0A4KK2-080-358--001_300N Bansbach Easylift lockable Gas Spring K-type with Rigid locking in both directions Size 10/22 Push-out Force F1: 300N stroke 80mm EL1: 358mm with elbowjoint on cylinder side A4 normal speed
	K0A4KK2-080-358--002_300N Bansbach Easylift lockable Gas Spring K-type with Rigid locking in pull direction Size 10/22 Push-out Force F1: 300N stroke 80mm EL1: 358mm with elbowjoint on cylinder side A4 slow speed
	K0A4KK2-080-358--003_400N Bansbach Easylift lockable Gas Spring K-type with Rigid locking in both directions Size 10/22 Push-out Force F1: 400N stroke 80mm EL1: 358mm with elbowjoint on cylinder side A4 normal speed
	K0A4KK2-080-358--005_600N Bansbach Easylift lockable Gas Spring K-type with Rigid locking in both directions Size 10/22 Push-out Force F1: 600N stroke 80mm EL1: 358mm with elbowjoint on cylinder side A4 normal speed
	A1A1N40-050-228-001/650N Bansbach Easylift Gas Spring Stainless steel AISI 316L EL1 length: 228mm Normal speed and normal end-damping Dimension (mm): Ø8/19 Stroke (mm): 50 Linear Force (N): 650
	20FGS Flat Plastic Handle
	W0A1KK2-200-646--002/600N Bansbach Easylift gas spring Lockable K-type Short release K / normal speed F1 Force: 600N / progressivity +/- 40% With valve Dimension (mm): Ø10/22 Stroke (mm): 200
	20ET2ALU Alu Push Button for lockable gasspring Suitable for short release Without coil spring
	F3F3G92-200-508—007/1000N Bansbach Gas spring Dynamic groove version Without depressurizing valve Different speed when extending (normal speed) Push out force F1: 1000N With Ball sockets on both sides Build in length EL1: 508mm Dimension (mm): Ø10/22 Stroke (mm): 200
	E2J2Z41-150-402-0XX/400N Bansbach Easylift Gas Traction Spring Pull-in Force: 400N Force Progressivity approx. 25% Hinge eyes on both sides Ø8.2mm Dimension (mm): Ø 8/22 Stroke (mm): 150
	Y9Y9-42-250-585 0xx 1000N Bansbach Easylift Gas Spring Standard version Normal speed, normal eind-damping F1 push-out force: 1000N with Elbowjoints wit M8x13mm bolt on both sides EL1: 585mm Dimension (mm): Ø10/22 Stroke (mm): 250
	K0N0PK3-059-215--001/200N Bansbach Easylift Gas spring Rigid Locking in push-in direction, push-out direction relatively rigid EL1: 215mm Threads M8 x 8mm on Cylinder side Push-out Force F1: 200N Short release version Dimension (mm): Ø10/28 Stroke (mm): 59
	D3D3B41-145-375-001/700N Bansbach Easylift Gas spring Heat setup version (sealings) with Valve in the Cylinder threaded end F1 Push-out force: 700N EL1 Build-in length: 375mm With Elbowjoint D3 on both sides Dimension (mm): Ø 8/22 Stroke (mm): 145
	H1H1-4G-082-216--001/20N Bansbach Easylift Gas Springs standard version Push-out Force F1:20N Hinge Eyes on both sides: Ø4,1mm EL1 Build-in length: 216mm Dimension (mm): Ø 4/12 Stroke (mm): 82
	C5C5-40-250-612--0XX/200N Bansbach Easylift Gas spring Standard version With clevis connections on both sides EL1 build-length: 612mm F1 push-out force: 200N Normal speed and normal end damping Dimension (mm): Ø8/19 Stroke (mm): 250
	K0F2PB2-070-260--004/050N Bansbach Lockable gas spring K-type 50N
	QS-40-600-2920N Bansbach Easylift Gas spring Quick Ship type slow speed, strong end damping F1-Pushout Force 2920N EL1: build in length: 1397mm(extended) Dimension (mm): Ø 20/40 Stroke (mm): 1600
	D0M0ZF3-100-200-01/100N Bansbach Easylift Traction Gas spring Pull-in Force F1: 100N EL1: 200mm With Valve in the threaded end With thread connections M10 on both sides Dimension (mm): Ø10/28 Stroke (mm): 100
NOT FOUND WHAT YOU'RE LOOKING FOR? Contact US!
