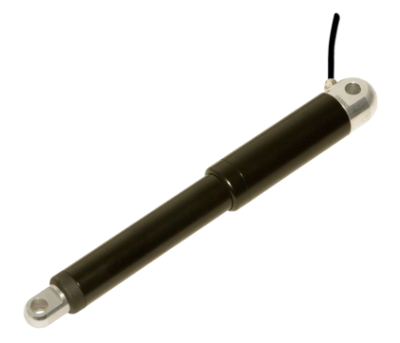

CON35 Series

Description

A COMPACT & POWERFUL ELECTRIC IN-LINE ACTUATOR

Our most versatile actuator is also the best-selling actuator. Its size, efficiency, and elegant design make this electric in-line actuator the perfect match for almost any small lifting task.

  • Speed: 3 to 33m/s
  • Supply oltage : 12 of 24VDC
  • Linear Force: 120 to 2200N
  • Stroke: 50 to 750mm

Customisation options:

  • Other stroke lengths and built-in dimensions available on request
  • Brackets tailored to your application
  • 'Harsh Environment' (tested to IP68 and IP69)
  • With or without Hall sensors for positioning/synchronization   icon version of this
  • Available in any RAL color and stainless steel
  • Version approved for medical use (24 VDC)

Some products in this category

Products
350050+143252+020000

Concens

CON35 actuator
Noise lowering
With Hall sensors
Alumunium front & back brackets
With Molex connector

Cable Length (m): 5 Stroke (mm): 50 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 16 Protection class: IP66
350500-053230+060000

Concens

CON35 in-line actuator
with Hall sensors
cable without connector
Std.Steel version IP66
Alu brackets with Spherical bearings
Black Tube and piston Ring, RAL 9005

Cable Length (m): 3 Stroke (mm): 500 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 33 Linear Force (N): 120 Protection class: IP66
350100+713212+0X0002

Concens

in-line linear actuator with DC motor
350050+7132X7+02000X

Concens

Con35 stroke 50mm
ratio:71/1 2200N
24V DC - Low noise version
13m screened cable with molex minifit connector
with Hall sensors
Std steel Ip66 version with alu brackets
Black tube and piston ring RAL9005 shine 25
350100-713236+449900

Concens Con35 linear actuator

Pitch & Nut: 2mm
Cable Length: 3m
Cable Type & Connector: Screened Black cable, no connector
With hall sensors
Steel & IP Class: AISI316, Harsh Environment (HE)
Brackets: AISI316
Tube and piston Color: AISI

Gear: ratio 71 Stroke (mm): 100 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 3 Linear Force (N): 2200
350250-273220-030000

CON35 in-line actuator
Standard steel version with alu piston
Black cable without connector
no hall sensors
With alu brackets with clevis

Cable Length (m): 2 Stroke (mm): 250 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 7.5 Linear Force (N): 900 Protection class: IP66
350250-273220-930200

CON35 in-line actuator
Standard steel version Harsh environment
Black cable without connector
No hall sensors
With alu brackets with clevis

Cable Length (m): 2 Stroke (mm): 250 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 7.5 Linear Force (N): 900 Protection class: IP68
350250-143220-930200

Con35 in-line actuator
without Hall sensors
Standard steel version with Alu brackets with clevis

Cable Length (m): 2 Stroke (mm): 250 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 16 Linear Force (N): 400 Protection class: IP68
350050-053250-000000

CON35 actuator
Without Hall sensors
PA front & back brackets
Black without Molex connector

Cable Length (m): 5 Stroke (mm): 50 Supply Voltage (V): 24 VDC Linear Speed (mm/s): 33 Linear Force (N): 120 Protection class: IP66
350400-191230-459900

Con35 in-line actuator
without Hall sensors
Stainless steel version with SS brackets with clevis

Cable Length (m): 3 Stroke (mm): 400 Supply Voltage (V): 12 VDC Linear Speed (mm/s): 7.5 Linear Force (N): 900 Protection class: IP68
NOT FOUND WHAT YOU'RE LOOKING FOR? Contact US!
Product DESCRIPTIOn
350050+143252+020000

Concens

CON35 actuator
Noise lowering
With Hall sensors
Alumunium front & back brackets
With Molex connector

  • Cable Length (m): 5
  • Stroke (mm): 50
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 16
  • Protection class: IP66
350500-053230+060000

Concens

CON35 in-line actuator
with Hall sensors
cable without connector
Std.Steel version IP66
Alu brackets with Spherical bearings
Black Tube and piston Ring, RAL 9005

  • Cable Length (m): 3
  • Stroke (mm): 500
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 33
  • Linear Force (N): 120
  • Protection class: IP66
350100+713212+0X0002

Concens

in-line linear actuator with DC motor
350050+7132X7+02000X

Concens

Con35 stroke 50mm
ratio:71/1 2200N
24V DC - Low noise version
13m screened cable with molex minifit connector
with Hall sensors
Std steel Ip66 version with alu brackets
Black tube and piston ring RAL9005 shine 25
350100-713236+449900

Concens Con35 linear actuator

Pitch & Nut: 2mm
Cable Length: 3m
Cable Type & Connector: Screened Black cable, no connector
With hall sensors
Steel & IP Class: AISI316, Harsh Environment (HE)
Brackets: AISI316
Tube and piston Color: AISI

  • Gear: ratio 71
  • Stroke (mm): 100
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 3
  • Linear Force (N): 2200
350250-273220-030000

CON35 in-line actuator
Standard steel version with alu piston
Black cable without connector
no hall sensors
With alu brackets with clevis

  • Cable Length (m): 2
  • Stroke (mm): 250
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 7.5
  • Linear Force (N): 900
  • Protection class: IP66
350250-273220-930200

CON35 in-line actuator
Standard steel version Harsh environment
Black cable without connector
No hall sensors
With alu brackets with clevis

  • Cable Length (m): 2
  • Stroke (mm): 250
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 7.5
  • Linear Force (N): 900
  • Protection class: IP68
350250-143220-930200

Con35 in-line actuator
without Hall sensors
Standard steel version with Alu brackets with clevis

  • Cable Length (m): 2
  • Stroke (mm): 250
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 16
  • Linear Force (N): 400
  • Protection class: IP68
350050-053250-000000

CON35 actuator
Without Hall sensors
PA front & back brackets
Black without Molex connector

  • Cable Length (m): 5
  • Stroke (mm): 50
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 33
  • Linear Force (N): 120
  • Protection class: IP66
350400-191230-459900

Con35 in-line actuator
without Hall sensors
Stainless steel version with SS brackets with clevis

  • Cable Length (m): 3
  • Stroke (mm): 400
  • Supply Voltage (V): 12 VDC
  • Linear Speed (mm/s): 7.5
  • Linear Force (N): 900
  • Protection class: IP68
