CON50 Series

Description

COMPACT & POWERFUL ELECTRIC IN-LINE ACTUATOR

This actuator offers the perfect solution if the smaller CON35 falls short in terms of pushing force or speed.

  • Speed: 4 to 70m/s
  • Voltage 12 or 24VDC
  • Load capacity: 500 to 4500N
  • Stroke length: 50 to 750mm

Customisation options:

  • Other stroke lengths and built-in dimensions available on request
  • Brackets tailored to your application
  • 'Harsh Environment' (tested to IP68 and IP69)
  • With or without Hall sensors for positioning/synchronization   icon version of this
  • Available in any RAL color and stainless steel
  • Version approved for medical use (24 VDC)


Some products in this category

ProductDESCRIPTIOn
350300-143220-930200

Con35 in-line actuator
without Hall sensors
Standard steel version with Alu brackets with clevis

  • Cable Length (m): 2
  • Stroke (mm): 300
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 16
  • Linear Force (N): 400
  • Protection class: IP68
500300-14335x-060001

1. Con50
2. Stroke Length: 300 mm
3. Low Noise: Standard
4. Gear Ratio: 14/1 ; Force: 1750N ; nom.Speed: 20mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 5m
8. Cable Type & Connector: Shielded Black cable, no connector
9. Hall Sensors/Integrated Controller (icon): Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum with spherical bearings
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

500050-043350-000000

CON50 in-line actuator
Without Hall Sensors
black cable without connector.
Std Steel version IP66 with PA brackets

  • Cable Length (m): 5
  • Stroke (mm): 50
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 70
  • Linear Force (N): 500
  • Protection class: IP66

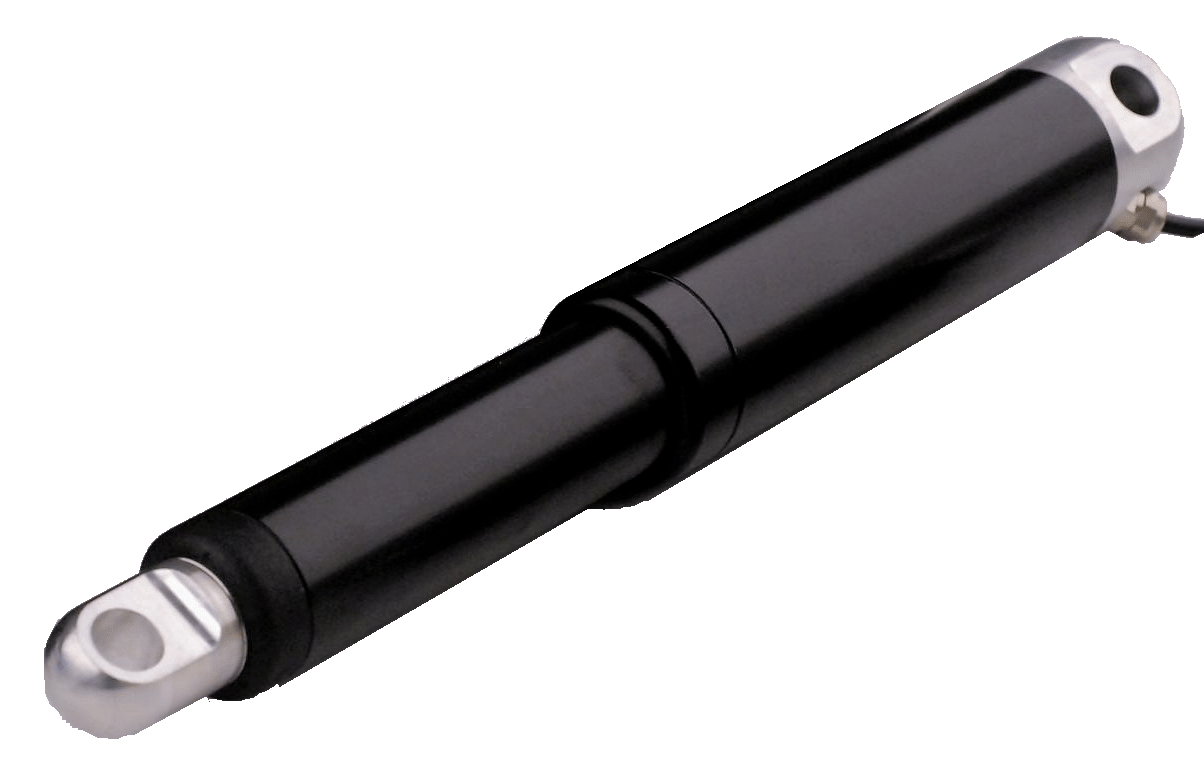

500300-493387+940200

CON50 in-line actuator
with Hall Sensors for synchronisation
black shielded cable with Molex Minifit connector.
Std Steel, Harsh environment version IP68
with Stainless steel brackets
Build-in length: 584mm (retracted) - 884mm (extracted)

  • Stroke (mm): 300
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 6
  • Linear Force (N): 4500
  • Protection class: IP68
500150-143330+020000

Concens

Inline DC actuator Con50
Black cable, no connector
With hall sensors
Alu brackets


  • Gear: ratio 14
  • Cable Length (m): 3
  • Stroke (mm): 150
  • Supply Voltage (V): 24 VDC
  • Protection class: IP66

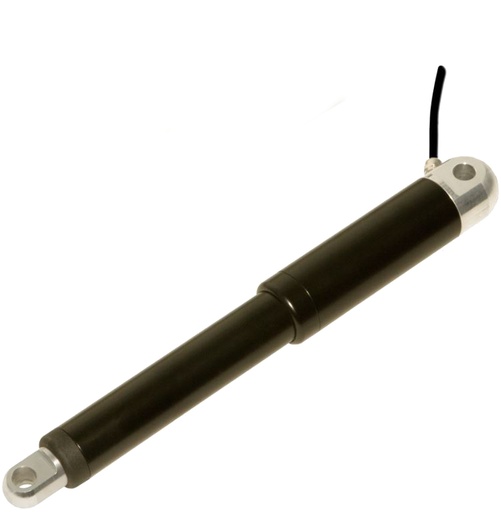

500100-243392-020000

Concens

1. Con50
2. Stroke Length: 100mm
3. Low Noise: Standard
4. Gear Ratio: 24/1 - 3100N - 12mm/s
5. Voltage & Certifications: 24VDC
6. Pitch & Nut: 3mm
7. Cable Length: 9m
8. Cable Type & Connector: Black cable, Molex Minifit Connector
9. Without hall sensors
10. Steel & IP Class: Std. steel, IP66
11. Brackets: Aluminum
12. Tube Color: Black, RAL9005, shine 25
13. Piston Ring Color: Black, standard

  • Cable Length (m): 9
  • Stroke (mm): 100

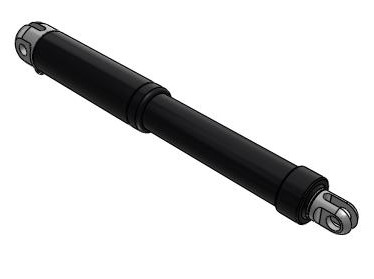

500150-143356+930200

Con 50 linear actuator
With Hall sensors
with molex minifit connector
alu brackets with clevis
Black tube and piston ring
RAL9005, shine 25
Harsh Environment IP68 protection

  • Cable Length (m): 1
  • Stroke (mm): 150
  • Supply Voltage (V): 24 VDC
  • Linear Speed (mm/s): 20
  • Linear Force (N): 1750
  • Protection class: IP68
NOT FOUND WHAT YOU'RE LOOKING FOR? Contact US!
